Heavy-Duty Galvanized Trench Drain Grating: Industrial-Grade Drainage Systems for Metal Buildings

In industrial, municipal, and commercial construction, heavy-duty drainage systems are non-negotiable—especially for areas requiring robust performance under heavy loads, frequent use, or harsh conditions. Heavy-duty galvanized trench drain grating stands out as a top-tier solution, designed to handle the demands of ditches, trenches, and industrial walkways while delivering long-lasting durability, efficient drainage, and enhanced safety. As a key metal building material, this steel grating system combines strength, corrosion resistance, and versatility to meet the needs of even the most demanding projects.

At the core of this trench drain grating’s reliability is its premium construction and manufacturing process. Crafted from high-quality low carbon steel (including the trusted Q235 grade) and stainless steel, it boasts exceptional load-bearing capacity and resistance to wear and tear. The pressed-welded design—utilizing 200-ton hydraulic resistance welding equipment—ensures that load-bearing flat steels and cross bars are fused into a rigid, stable structure. This precision engineering guarantees the grating can withstand heavy foot traffic, equipment loads, and environmental stressors, making it ideal for industrial facilities, construction sites, and municipal infrastructure.

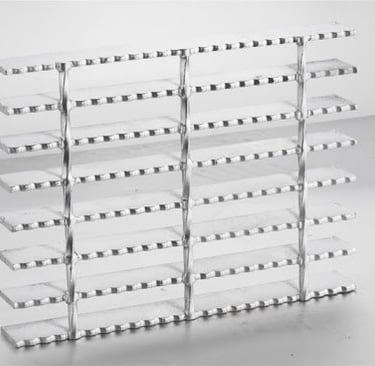

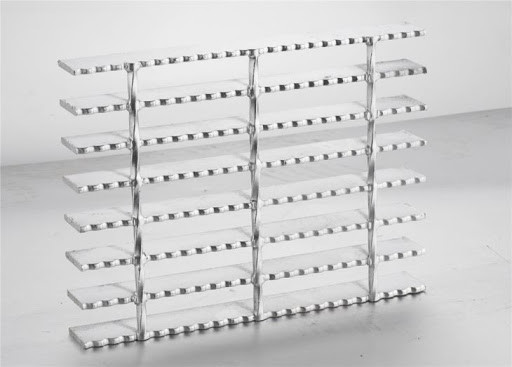

Versatility is a standout feature, with customizable specifications to fit diverse project requirements. Bearing bar sizes range from 20×3mm to 100×10mm, with pitches adjustable from 12.5mm to 100mm center-to-center to optimize load capacity and drainage efficiency. Cross bar pitches (38mm to 101.6mm) can also be tailored, while standard options (50mm or 100mm) cater to common drainage needs. The grating is available in plain and serrated bar types: serrated grating offers superior slip resistance for wet or high-traffic areas, while plain grating suits general-purpose applications—ensuring a perfect fit for any trench or ditch project.

Galvanized surface treatment is a game-changer for durability. Hot-dipped galvanization provides a protective layer that resists rust, corrosion, and chemical damage, extending the grating’s service life even in outdoor or humid environments. Additional surface options include cold galvanization, painting, anti-rust oil dipping, or natural finishes (for stainless steel), allowing customization based on project conditions and aesthetic preferences. The grating’s black, silver, or custom colors seamlessly integrate with existing metal buildings and infrastructure.

Installation and cost-effectiveness further elevate this drainage system. Designed for simplicity, the grating can be fixed to pre-installed supports using bolts or welding—completable by a single worker, saving time and labor costs. Its material-efficient design reduces the need for extra supporting structures, while its durability minimizes maintenance and replacement expenses over time. Compliance with international standards, including China’s YB/T4001.1-2007, the USA’s ANSI/NAAMM (MBG531-88), the UK’s BS4592-1987, and Australia’s AS1657-1985, ensures consistent quality and reliability across global projects.

The applications of heavy-duty galvanized trench drain grating are wide-ranging. It is a staple in industrial settings for factory trenches, warehouse drainage, and manufacturing plant walkways. Municipal projects rely on it for road ditches, park drainage systems, and public walkways. Commercial buildings, including malls, hotels, and logistics hubs, use it for efficient drainage in loading docks and outdoor areas. It also serves sectors like petroleum, chemical, power, and transportation, where heavy-duty performance and corrosion resistance are critical.

For projects seeking a robust, versatile, and cost-effective drainage solution, heavy-duty galvanized trench drain grating is an unbeatable choice. Its industrial-grade strength, customizable design, and compliance with global standards make it a reliable investment that stands the test of time. Whether you’re building a new industrial facility or upgrading municipal infrastructure, this steel grating system delivers the performance and safety your project demands.
