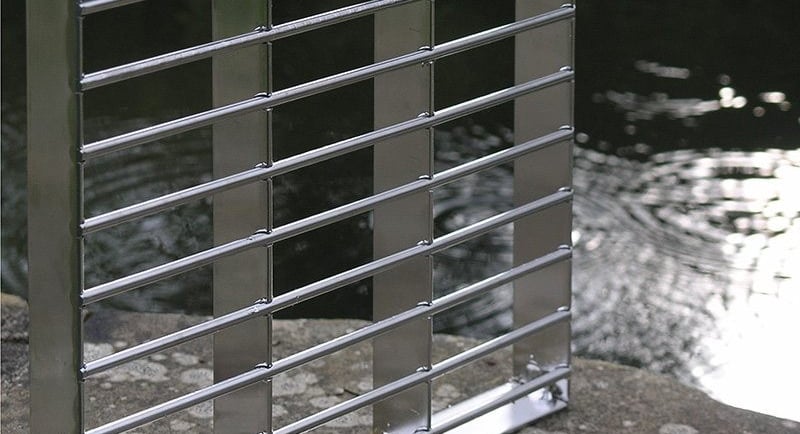

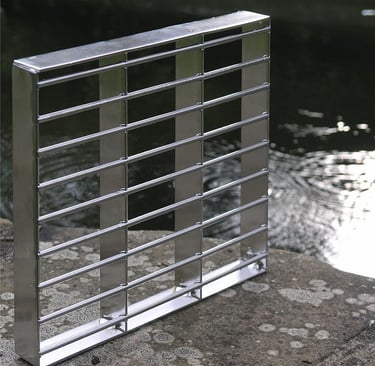

Zinc-Coated Steel Grating: Durable Steel Plates & Sheets for Industrial Floors & Walkways

When it comes to selecting long-lasting, high-performance metal building materials, zinc-coated steel grating—including steel grating plates and sheets—stands out as a top choice for industrial, commercial, and municipal projects. Combining exceptional corrosion resistance, structural strength, and versatile design, this grating delivers reliable performance for floors, walkways, and structural applications, making it a staple in construction projects where durability and low maintenance are non-negotiable.

At the core of zinc-coated steel grating’s appeal is its premium construction and protective zinc coating. Crafted from high-quality low carbon steel (such as the trusted Q235 grade) and stainless steel, the grating is built to withstand heavy loads, frequent use, and harsh environmental conditions. The zinc coating—applied via hot-dipped or cold galvanization—acts as a powerful barrier against rust, corrosion, and chemical damage, significantly extending the product’s service life compared to untreated steel. This makes it ideal for both indoor and outdoor use, from industrial warehouses and port facilities to outdoor walkways and municipal infrastructure.

Versatility is a key strength, with customizable specifications to suit diverse project needs. The grating is manufactured using a pressed-welded process, where load-bearing flat steels and horizontal cross bars are precision-welded with 200-ton hydraulic resistance welding equipment, ensuring strong, stable joints. Bearing bar specifications range from 20x3mm to 100x10mm, with adjustable pitches (12.5mm to 100mm center-to-center) to optimize load capacity. Cross bar pitches (38mm, 50mm, 76mm, etc.) can also be tailored, while standard options (50mm or 100mm) cater to common requirements. Available in plain and serrated bar types, the grating adapts to different slip-resistance needs: serrated for wet or high-traffic areas, and plain for general-purpose applications.

Installation and cost-effectiveness further enhance the grating’s value. Designed for simplicity, it can be easily fixed to pre-installed supports using bolts or welding, with a single worker capable of completing the process—saving time and labor costs. Its material-efficient design reduces the need for additional supporting structures, while the zinc coating minimizes maintenance and replacement expenses over time. The grating is available in black, silver, or custom colors, ensuring seamless integration with existing infrastructure, and can be packaged in wooden pallets, steel pallets, or custom solutions to suit shipping needs.

Compliance with international standards guarantees consistent quality and reliability. Zinc-coated steel grating meets rigorous specifications, including China’s YB/T4001.1-2007, the USA’s ANSI/NAAMM (MBG531-88), the UK’s BS4592-1987, and Australia’s AS1657-1985. This global certification ensures it performs exceptionally across industries, from petroleum and chemical plants to transportation hubs, food processing facilities, and real estate developments.

The applications of zinc-coated steel grating are wide-ranging. It is widely used as flooring and walkways in industrial facilities, warehouses, and workshops. Municipal projects rely on it for park walkways, road drainage covers, and public infrastructure. Commercial buildings, including malls, hotels, and hospitals, benefit from its safe, durable surfaces in lobbies, stairwells, and outdoor areas. Its anti-rust, strong, and easy-to-install features make it a go-to solution for any project requiring long-lasting metal grating.

For projects seeking a reliable, versatile, and cost-effective metal building material, zinc-coated steel grating is an unbeatable choice. Its robust construction, protective zinc coating, and customizable design make it a long-lasting investment that stands up to the toughest conditions—without compromising on safety or performance.
